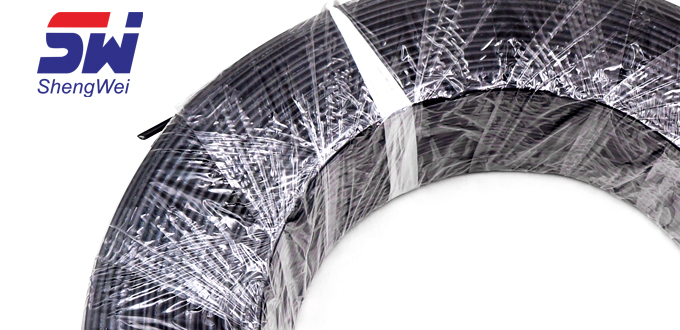

UL10070 PVC电子线
发布时间：2024-08-27 18:23:37来源：无锡胜维电气编辑部
UL10070 HOOK-UP WIRE 连接线
◎额定温度：105℃
◎额定电压：600V
◎参考标准：UL758,UL1581,CSA
◎导体使用单支或绞合18~4/0AWG 镀锡或裸铜
◎绝缘：PVC 符合ROHS、REACH 环保要求
◎阻燃：通过VW-1、FT1 阻燃测试
◎用途：用于一般电子、电器设备内部连接线
| 导体 CONDUCTOR |
绝缘 INSULATION |
导体电阻 Conductor resistance |
耐压强度 DIELECTRIC STRENGTH |
||||
| 20℃ | |||||||
| 规格 | 构造Construction | 外径 | 标称厚度Nominal Thickness | 外径 | 镀锡铜 | 裸铜 | VAC,1MIN |
| AWG | Diameter | Diameter | Tinned copper | Bare Copper | |||
| 18 | 63/0.127 | 1.16 | 0.76 | 2.8 | 23.2 | 21.8 | 2000 |
| 16 | 105/0.127 | 1.5 | 3.15 | 14.6 | 13.7 | 2000 | |
| 14 | 168/0.127 | 2.05 | 3.7 | 8.96 | 8.62 | 2000 | |
| 12 | 259/0.127 | 2.55 | 4.2 | 5.64 | 5.43 | 2000 | |
| 10 | 413/0.127 | 3.2 | 4.9 | 3.546 | 3.409 | 2000 | |
| 8 | 660/0.127 | 4.3 | 1.15 | 6.8 | 2.23 | 2.144 | 2000 |
| 6 | 1045/0.127 | 5.15 | 1.53 | 8.45 | 1.403 | 1.348 | 2000 |
| 4 | 1666/0.127 | 6.95 | 10.2 | 0.882 | 0.8481 | 2000 | |
| 2 | 2646/0.127 | 8.8 | 12.1 | 0.5548 | 0.5335 | 2000 | |
| 1 | 3360/0.127 | 10.4 | 2.04 | 14.8 | 0.4398 | 0.423 | 2500 |
| 1/0 | 4200/0.127 | 11.7 | 16.1 | 0.3487 | 0.3354 | 2500 | |
| 2/0 | 5320/0.127 | 12.6 | 17 | 0.2766 | 0.266 | 2500 | |
| 3/0 | 6783/0.127 | 14.2 | 18.6 | 0.2194 | 0.211 | 2500 | |
| 4/0 | 8512/0.127 | 15.9 | 20.3 | 0.1722 | 0.1673 | 2500 | |
